Naked eye 3D LED large screen with high brightness and saturation
The naked eye 3D LED large screen is an innovative display solution that can present amazing three-dimensional visual effects without wearing special glasses. It uses advanced 3D imaging technology and ultra-fine pixel pitch to provide realistic images and videos with excellent depth and realism.
Feature And Advantage
Wide viewing angle: View from multiple angles, perfect for public spaces.
Production Process
Demand Analysis
Product Design: A professional R&D team is responsible for designing the appearance and internal structure of the screen, covering aspects such as LED panel, circuit design, heat dissipation solution and shell material.
Material Selection: High-brightness SMD lamp beads, driver IC, aluminum heat sink and other key raw materials are selected.
Module Production Process
PCB Manufacturing: The production of printed PCB boards follows the design blueprint to ensure accuracy and functionality.
Component Soldering: Using advanced SMT machinery, electronic components are precisely soldered to the PCB.
LED Chip Mounting: High-brightness LED chips are mounted to the PCB using an automated system, ensuring precise placement and orderly alignment of the LED.
Initial Testing: LED modules undergo a series of tests to evaluate their operating status, color uniformity, and brightness levels to ensure quality control.
Screen assembly
Module integration: Combining individual LED modules to create a display of the desired size, with meticulous alignment and calibration ensuring the screen remains perfectly flat.
Brightness and color calibration: Fine-tuning screen brightness to meet specific requirements, high-brightness outdoor displays typically reach brightness levels of 5,000 to 8,000 nits for optimal visibility in a variety of lighting conditions.
Quality Inspection:
Aging Test: The display is powered on continuously for 24 to 72 hours to check for any pixel failures or other issues.
Weather Test: The screen is stress tested under extreme conditions, such as high and low temperatures, humidity, and UV exposure to assess its durability and reliability.
Performance Verification: This includes testing key performance indicators such as refresh rate, grayscale accuracy, and viewing angle to ensure optimal visual quality.
Packaging and Delivery:
The screens are carefully packaged with all necessary accessories and shipped directly to the installation site for final assembly and setup.
Specifications
|

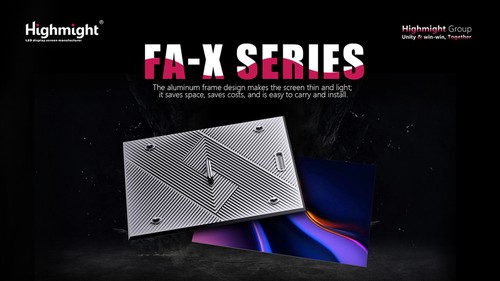

LED outdoor fixed front maintenance FA-X series |
|||||
|
Module model (mm) |
FA-X 4.4 |
FA-X 5.7 |
FA-X 6.6 |
FA-X 8 |
FA-X 10 |
|
Module point spacing (mm) |
4.44 |
5.71 |
6.66 |
8 |
10 |
|
Module Size (mm) |
480x320 |
480x320 |
480x320 |
480x320 |
480x320 |
|
Module pixel |
108x72 |
84x56 |
72x48 |
60x40 |
48x32 |
|
PCB |
4 |
4 |
2 |
2 |
2 |
|
Maximum current |
22A |
22A |
22A |
22A |
22A |
|
Density pixels (dot/㎡) |
50630 |
30625 |
22500 |
15625 |
10000 |
|
Lamp bead model |
SMD1921 |
SMD2727 |
SMD2727 |
SMD2727 |
SMD2727 |
|
Brightness (cd/㎡) |
≤6000 |
≤6000 |
≤6000 |
≤6000 |
≤6000 |
|
Refresh rate (Hz) |
3840 |
3840 |
3840 |
3840 |
3840 |
|
Scanning mode |
1/9sweep |
1/7sweep |
1/6sweep |
1/4sweep |
1/2sweep |
|
Box size (mm) |
960x960x77 |
960x960x77 |
960x960x77 |
960x960x77 |
960x960x77 |
|
Cabinet resolution |
216x216 |
168x168 |
144x144 |
120x120 |
96x96 |
|
Lamp working life |
≥100,000 hours |
||||
|
Pixel composition |
RGB 3-in-1 |
||||
|
Grayscale |
14bit |
||||
|
Maximum power (W/㎡) |
1000-1200W |
||||
|
Conventional power (W/㎡) |
400-600W |
||||
|
Eliminate ghosting |
Equipment |
||||
|
Input voltage |
AC100～240V 50/60HZ |
||||
|
Module input voltage |
DC4.7～5V±0.2V |
||||
|
Work Environment |
Temperature -10～40℃ Humidity 10％-90％ |
||||
|
Box weight |
24.5kg |
||||
Application Areas
Advertising media | Exhibitions | Commercial displays | Government and corporate image | Cultural tourism and real estate | Entertainment culture
About Us
Highmight is a renowned leader in the LED display sector, specializing in manufacturing, sales, engineering, and customer support. With a strong focus on integrity, practicality, and innovation, Highmight has earned its reputation as a top-tier brand in the industry.
Himate Technology is committed to embracing cutting-edge technology, implementing advanced management, and has a strong R&D team. At present, the company's LED display products are widely used in various fields such as public communications, transportation hubs, medical care, finance, education, manufacturing, ports, stadiums, airports, retail, customs, monitoring centers, advertising, entertainment and real estate. These displays play an important role in applications such as urban traffic management, highway systems, environmental monitoring, and any scenario that requires the rapid and efficient dissemination of public information.
Certificate
FAQ
Q: What is an LED display?
A: An LED display is a screen that uses light-emitting diodes as a display light source and is widely used in advertising, stages, stadiums and other scenes.
Q: What is the working principle of an LED display?
A: An LED display displays images and videos by controlling the brightness and color of LEDs. Each pixel is composed of multiple LEDs, which can be mixed to produce a variety of colors.
Q: How to choose the resolution of an LED display?
A: The resolution you choose depends on the viewing distance and the usage scenario. The closer the distance, the higher the resolution; vice versa. Common resolutions include P2, P3.91, P6, etc. The smaller the P value, the higher the resolution.
Q: How long is the service life of an LED display?
A: The service life of an LED display is generally between 80,000 and 100,000 hours, and the specific life depends on the usage environment and maintenance.
Q: How to maintain an LED display?
A: Clean the screen surface regularly, check the power supply and control system, ensure good heat dissipation, and prevent the humid environment from affecting the equipment.
