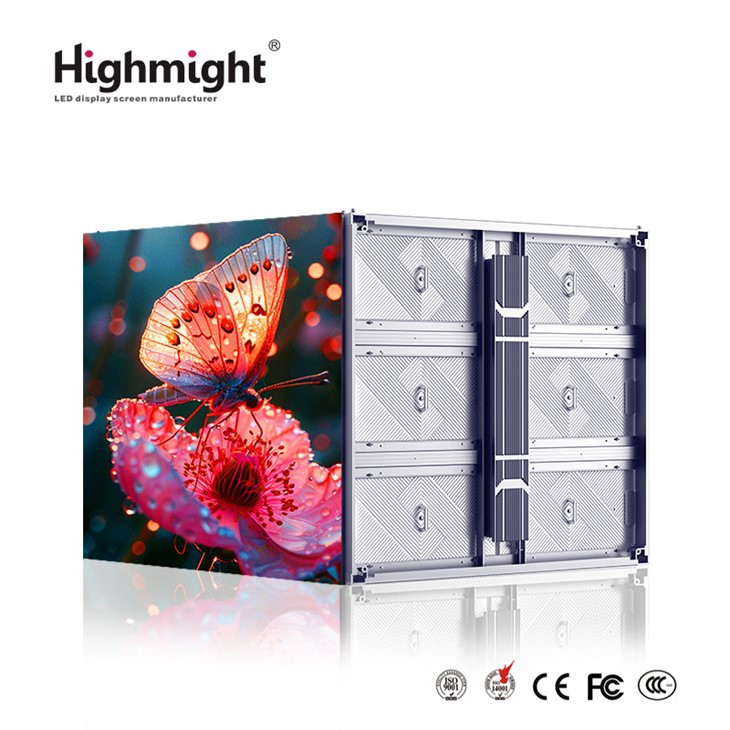

Waterproof Outdoor LED Screen

The waterproof outdoor LED display is designed for harsh weather environments. It uses high protection grade (IP65/IP67) materials, is rainproof, dustproof, and corrosion-resistant, and is suitable for various outdoor scenes. It has high brightness and is still clearly visible under the sun. It supports intelligent dimming and is energy-saving and environmentally friendly. It is widely used in shopping mall advertisements, stadiums, traffic guidance, stage activities and other occasions, providing a stable and high-definition visual experience, and is an ideal choice for outdoor digital communication!

Feature and Advantage



Protection performance

IP65/IP67 high protection level: dustproof, water-proof, rain-proof, and adaptable to extreme weather (such as typhoons, plum rains, etc.). Sealed module design prevents water vapor penetration, protects the internal circuit, and extends the life of the screen.

High brightness and energy saving

5000-10,000 nits high brightness, clearly visible in the sun, no reflection, very suitable for scenes with poor lighting conditions. High-efficiency LED chips, reduce energy consumption, save electricity bills for long-term use. Modular design, single module can be quickly replaced if damaged, reducing maintenance costs.

Ultra-durability and stability

Anti-corrosion materials, aluminum housing/rust-proof coating, suitable for seaside and high humidity areas. Wide operating temperature range (-30°C to 60°C), stable operation in cold or hot weather.

High refresh rate and seamless display

3840Hz+ high refresh rate, no ghosting, suitable for dynamic images such as live broadcasts and events. Seamless splicing technology, large-screen display without visual fragmentation.

Production Process

1. Raw material procurement and inspection
Key material procurement:

LED lamp beads (must meet the requirements of waterproof, dustproof, and high brightness)

Driver IC (constant current driver chip)

PCB board (waterproof treatment, heat dissipation design)

Power module (support wide voltage, lightning protection)

Box material (aluminum profile or die-cast aluminum, anti-corrosion treatment)

Control system (sending card, receiving card)

Heat dissipation material (fan or heat sink)

Inspection standard:

LED lamp bead brightness, wavelength consistency detection

PCB circuit continuity test

Box waterproof level test (IP65 and above)

2. Module production
SMT patch:

LED lamp beads, driver IC, etc. are accurately soldered to the PCB board through the patch machine.

Use AOI (automatic optical inspection instrument) to check the welding quality.

Glue sealing:

Three-proof treatment of PCB board (moisture-proof, corrosion-proof, and salt spray-proof).

Pouring waterproof glue (for high outdoor protection needs).

Aging test:

The module is powered on and aged for 48 hours to eliminate early faults.

3. Box assembly
Structural assembly:

Fix the module to the box and connect the power and signal lines.

Install the cooling system (such as fans and heat sinks).

Waterproof treatment:

Install waterproof strips at the box joints.

Use aviation plugs at the interface (waterproof and anti-falling).

4. System integration
Control system installation:

Configure the sending card (control computer end) and the receiving card (box end).

Debug signal transmission stability (support long-distance transmission).

Power system integration:

Install multiple redundant power supplies and support power-off protection.

5. Screen full-screen debugging
Brightness and color correction:

Use point-by-point correction technology to ensure that the color difference is ≤0.003.

Adjust the grayscale level (above 16bit).

Functional test:

Video playback fluency test.

Verify remote control and automatic brightness adjustment functions.

Environmental adaptability test (high temperature, low temperature, humidity cycle).

6. Aging and final inspection
Continuous aging:

The whole screen runs continuously for 72 hours, and the dead light rate is monitored (≤ 1 in 10,000).

Final inspection items:

Waterproof test (spray test).

Wind pressure test (for outdoor strong wind environment).

Safety certification (such as CE, RoHS, etc.).

Specifications

Application Areas

Urban business districts/shopping centers: play brand advertisements and promotional information to attract customers and enhance the business atmosphere (such as New York Times Square).

Building exterior walls/curtain walls: as landmark advertising space, cover high-density traffic areas and enhance brand exposure.

Transportation hubs: display high-end brand advertisements or public service information in airports, high-speed rail stations, bus stations and other places.

Sports stadiums: broadcast game images, scores, sponsor advertisements in real time to enhance the on-site viewing experience (such as the World Cup stadium screen).

Concerts/music festivals: as stage background, with lighting effects, create an immersive visual impact.

Celebrations: National Day, New Year's Eve and other festivals are used to play theme videos or countdowns.

Highways/toll stations: publish information such as road conditions, weather, and traffic warnings to help smart traffic management.

Subway/bus stations: dynamically display train timetables, public service advertisements or emergency notices.

Taxi/bus bodies: mobile LED screens play advertisements to cover the mobile population in the city.

Square/Park: Public welfare content such as government announcements, epidemic prevention tips, civilized city propaganda, etc.

Disaster emergency: Quickly release evacuation instructions or rescue information in the event of emergencies such as typhoons and earthquakes.

Tourist attractions: Display guide maps, performance times, and crowd flow warnings at the entrance of the scenic area or the visitor center.

Museum/Science and Technology Museum: Interactive LED screens are used for exhibition explanations or virtual experiences.

City landmarks: Such as the LED show on the exterior wall of the Burj Khalifa in Dubai, which enhances the city's image and tourism appeal.

Construction site fences: Play project renderings or investment advertisements during construction to beautify the environment.

Wedding/Banquet Hall: Customized background screens display videos of newlyweds or blessing bullet screens.

About Us

Shenzhen Highmight Technology Co., Ltd., established in 2010, has positioned itself as a frontrunner in the LED display industry, combining visionary design, advanced manufacturing capabilities, and a comprehensive global sales and service network. With over 100 national patents, Highmight is not just a player in the LED market but a leader, setting new standards in innovation, quality, and performance that resonate across the global stage.

Driven by a profound commitment to R&D, Highmight allocates 20% of its annual revenue to pioneering technology advancements. Supported by a highly skilled R&D team of over 50 experts, the company continually pushes the boundaries of LED display capabilities. From breakthrough transparent screens and ultra-high-resolution small-pitch displays to interactive floor tiles, uniquely shaped creative designs, and the state-of-the-art COB MINI flip series, Highmight consistently delivers cutting-edge solutions that revolutionize the industry. These innovations have cemented Highmight's leadership in multiple product categories, solidifying its position as the go-to expert in LED technology.

With more than 10,000 successful projects delivered across the globe, Highmight's LED displays are trusted across diverse sectors, including transportation, media, government, sports, and commercial real estate. Whether adorning stadiums or transforming urban landscapes, Highmight's displays create unforgettable visual experiences, reshaping environments and enriching interactions. As a beacon of innovation and quality, Highmight doesn't just follow industry trends-it leads them, with a clear vision to dominate the global market and redefine the future of LED display technology.

Certificate

The waterproof outdoor LED display screen has been fully tested, including waterproof level (IP65/IP67), brightness, color consistency, weather resistance and stability testing. The product meets the outdoor use standards and has high protection performance, ensuring stable operation in complex environments and meeting the needs of various outdoor advertisements and activities.
