High-Quality LED Display Module Manufacturer in China
ChinaAs a professional LED display manufacturer, Highmight specializes in providing high-performance LED display modules that deliver exceptional brightness, color uniformity, and long-lasting stability. Our LED modules are designed for a wide range of indoor and outdoor LED display applications - from advertising billboards to control rooms and retail signage.
Whether you're looking to buy LED module components for your existing screens or need a custom LED module solution for your project, Highmight offers reliable, energy-efficient, and cost-effective options. As a trusted China LED module supplier and LED module factory, we ensure superior quality, competitive LED module price, and fast global delivery.
Key Features of Highmight LED Display Module
Ultra-high brightness and excellent heat dissipation
Each LED module is produced using high-quality Nationstar or Kinglight LEDs, guaranteeing high brightness and uniform color reproduction. With advanced calibration technology, the display achieves vivid visuals even under direct sunlight, making it ideal for both indoor and outdoor display environments.Our LED display modules feature optimized PCB design, gold-wire LED chips, and aluminum back plates for efficient heat management. This ensures long lifespan operation-over 100,000 hours-while maintaining stable brightness and performance under 24/7 working conditions.
Seamless splicing and simple maintenance
Highmight's LED module for display screen adopts high-precision die-casting molding, achieving excellent flatness and seamless splicing between panels. The result is a smooth and immersive visual effect without visible gaps or unevenness.Modules are designed with magnetic or screw fixing options for easy maintenance. Both front and rear service access make installation and maintenance faster, reducing labor time and cost, especially for large-scale advertising or control room applications.
Energy Efficiency and Stable Operation
Using low-voltage, energy-saving ICs and power solutions, Highmight modules reduce power consumption by up to 30% compared to traditional modules. Stable signal transmission and anti-interference performance ensure flicker-free display and lower heat generation.Available in pixel pitches from P1.25 to P10, Highmight provides custom LED module options according to your screen resolution needs. Whether it's a fine-pitch indoor video wall or a large outdoor billboard, we can tailor the solution for your project.
Highmight Strength in Manufacturing and Quality Control

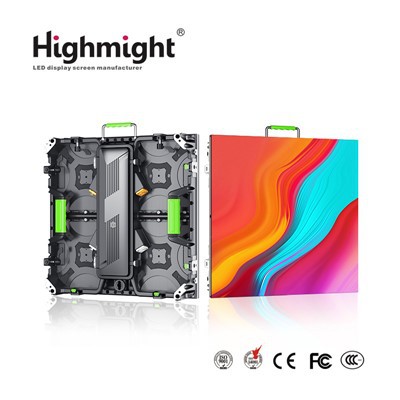

Companies who rent out professional LED screens and install them require a source they can trust. Highmight's manufacturing skills are meant to make things that are always reliable.
Strong Production Line and Process Control: Our cutting-edge facility uses automated placement equipment and precise engineering to make sure that every LED panel is perfectly flat and leaves the factory with the same high quality every time. To stop virtual soldering, which is a typical cause of field failures, we have tight tolerance controls throughout production. These include carefully controlling the temperature and time of wave soldering (preheating at 100°C±5° and soldering at 245°C±5° for ≤3s).
Strict Quality Checks: Each module is thoroughly checked. We use stringent LED mixing methods to make sure that the brightness is always perfect and that there are no color patches. We strictly monitor verticality for vertical LEDs to keep them perfectly consistent.
Proven Field Performance: Our products can handle being moved around a lot and put up and taken down quickly. The optimized散热设计 (heat dissipation design) of the PCB and cabinet keeps things stable over time and stops performance from going down too soon, especially during long events.
Specifications
LED indoor module P series (PH2) |
||
|
Module Size (mm) |
256x128 |
320x160 |
|
Module pixel |
128x64 |
160x80 |
|
Density pixels (dot/㎡) |
250000 |
250000 |
|
Lamp bead model |
SMD1515 |
SMD1515 |
|
Brightness (cd/㎡) |
500-800 |
500-800 |
|
Refresh rate (Hz) |
1920/3840 |
1920/3840 |
|
Scanning mode |
1/32sweep |
1/40sweep |
|
Module thickness (mm) |
15 |
16 |
|
Service life |
>100000 hours |
|
|
Pixel composition |
RGB three-in-one |
|
|
Grayscale |
14bit |
|
|
Maximum power (W/㎡) |
600-800W |
|
|
Average power (W/㎡) |
400-600W |
|
|
Eliminate ghosting |
equipped |
|
|
input voltage |
AC100～240V 50/60HZ |
|
|
Module input voltage |
DC4.7～5V±0.2V |
|
|
Environment |
temperature-10~40℃humidity10%-90% |
|
LED indoor module P series (PH2.5) |
|||
|
Module Size (mm) |
160x160 |
320x160 |
320x160 |
|
Module pixel |
64x64 |
128x64 |
128x64 |
|
Density pixels (dot/㎡) |
160000 |
160000 |
160000 |
|
Lamp bead model |
SMD2020 |
SMD2020 |
SMD2020 |
|
Brightness (cd/㎡) |
500-800 |
500-800 |
500-800 |
|
Refresh rate (Hz) |
1920/3840 |
1920/3840 |
920/3840 |
|
Scanning mode |
1/32sweep |
1/32sweep |
1/64sweep |
|
Module thickness (mm) |
15 |
15 |
15 |
|
Service life |
>100000 hours |
||
|
Pixel composition |
RGB three-in-one |
||
|
Grayscale |
14bit |
||
|
Maximum power (W/㎡) |
600-800W |
||
|
Average power (W/㎡) |
400-600W |
||
|
Eliminate ghosting |
equipped |
||
|
input voltage |
AC100～240V 50/60HZ |
||
|
Module input voltage |
DC4.7～5V±0.2V |
||
|
Environment |
temperature-10~40℃humidity10%-90% |
||
LED indoor module P series (PH3) |
||
|
Module model |
P3 |
P3.076 |
|
Module point spacing(mm) |
3 |
3.076 |
|
Module Size (mm) |
192x192 |
320x160 |
|
Module pixel |
64x64 |
104x52 |
|
Density pixels (dot/㎡) |
111111 |
105625 |
|
Lamp bead model |
SMD2020 |
SMD2020 |
|
Brightness (cd/㎡) |
500-800 |
500-800 |
|
Refresh rate (Hz) |
1920/3840 |
1920/3840 |
|
Scanning mode |
1/32sweep |
1/26sweep |
|
Module thickness (mm) |
15 |
15 |
|
Service life |
>100000 hours |
|
|
Pixel composition |
RGB three-in-one |
|
|
Grayscale |
14bit |
|
|
Maximum power (W/㎡) |
600-800W |
|
|
Average power (W/㎡) |
400-600W |
|
|
Eliminate ghosting |
equipped |
|
|
input voltage |
AC100～240V 50/60HZ |
|
|
Module input voltage |
DC4.7～5V±0.2V |
|
|
Environment |
temperature-10~40℃humidity10%-90% |
|
LED indoor module P series (PH4) |
|||||
|
Module model |
256x128 |
128x128 |
256x128 |
256x256 |
320x160 |
|
Module point spacing(mm) |
64x32 |
32x32 |
64x32 |
64x64 |
80x40 |
|
Module Size (mm) |
62500 |
62500 |
62500 |
62500 |
62500 |
|
Module pixel |
SMD2020 |
SMD2020 |
SMD2020 |
SMD2020 |
SMD2020 |
|
Density pixels (dot/㎡) |
500-800 |
500-800 |
500-800 |
500-800 |
500-800 |
|
Lamp bead model |
1920/3840 |
1920/3840 |
1920/3840 |
1920/3840 |
1920/3840 |
|
Brightness (cd/㎡) |
1/16sweep |
1/32sweep |
1/32sweep |
1/32sweep |
1/40sweep |
|
Refresh rate (Hz) |
0.274 |
0.099 |
0.274 |
0.398 |
0.432 |
|
Scanning mode |
15 |
15 |
15 |
15 |
15 |
|
Module thickness (mm) |
>100000 hours |
||||
|
Service life |
RGB three-in-one |
||||
|
Pixel composition |
14bit |
||||
|
Grayscale |
600-800W |
||||
|
Maximum power (W/㎡) |
400-600W |
||||
|
Average power (W/㎡) |
equipped |
||||
|
Eliminate ghosting |
AC100～240V 50/60HZ |
||||
|
input voltage |
DC4.7～5V±0.2V |
||||
|
Module input voltage |
temperature-10~40℃humidity10%-90% |
||||
LED indoor module P series (PH5) |
|
|
Module model |
320x160 |
|
Module point spacing(mm) |
64x32 |
|
Module Size (mm) |
40000 |
|
Module pixel |
SMD2020 |
|
Density pixels (dot/㎡) |
500-800 |
|
Lamp bead model |
1920/3840 |
|
Brightness (cd/㎡) |
1/16sweep |
|
Refresh rate (Hz) |
15 |
|
Scanning mode |
>100000 hours |
|
Module thickness (mm) |
RGB three-in-one |
|
Service life |
14bit |
|
Pixel composition |
600-800W |
|
Grayscale |
400-600W |
|
Maximum power (W/㎡) |
equipped |
|
Average power (W/㎡) |
AC100～240V 50/60HZ |
|
Eliminate ghosting |
DC4.7～5V±0.2V |
|
input voltage |
temperature-10~40℃humidity10%-90% |
Application Areas
LED display module: shopping malls & retail stores advertising / Outdoor digital billboards & roadside signage / Sports stadium LED perimeter screens / Stage rental LED walls and event displays / Corporate conference rooms and control centers / Transportation hubs & airports / Smart city and traffic information boards / TV studios & broadcast backdrops / Exhibition halls & trade shows / Education and public information systems
Highmight Services
Our Production Capabilities
Advanced Production Lines: Highmight boasts multiple automated SMT production lines and die-cast housing assembly workshops, ensuring consistent precision and stability for every LED display module.
Strict Quality Control System: Each LED module used in displays undergoes rigorous aging, waterproofing, vibration, and brightness consistency testing. We maintain a defect rate below 0.2% and ensure long-term stable operation under various environmental conditions.
Strong R&D and Customization Capabilities: Our R&D team has over 10 years of LED engineering experience, enabling us to provide customized LED module designs based on specific pixel pitch, brightness levels, and display formats.
Large-Scale Production Capacity: As a large-scale LED module manufacturer, Highmight has a monthly production capacity exceeding 50,000 square meters, ensuring a stable supply of wholesale LED module orders and large-scale project integrations.
Fast Delivery and Global Support: We maintain ample inventory of standard pixel pitch modules and provide 24/7 global technical support, ensuring smooth installation and after-sales service worldwide.
Certificate
FAQ
Q: An LED display module: what is it?
A: LED chips, a PCB board, and a driving circuit make up an LED display module, which is the fundamental component of an LED screen. An LED display is made up of many modules.
Q: Is it possible to alter the pixel pitch and size?
A:Indeed. Highmight, a maker of bespoke LED modules, offers choices ranging from P0.9 to P10 with customizable brightness, module size, and configuration.
Q: How do I decide between LED modules for indoor and outdoor use?
A: While outdoor modules need greater brightness and waterproof protection (IP65), inside modules prioritize near viewing distance and good resolution.
Q: How long do Highmight LED modules last?
A: Under average working settings, our LED modules may last over 100,000 hours, guaranteeing stability and long-term performance.
Q: How long does a delivery usually take?
A: Delivery of regular models takes seven to fifteen business days. Depending on the specs, custom modules might take 20 to 25 days.
