First choice for rental: ultra-large transparent LED display, ready to use, creating a transparent visual feast
Our high-end rental transparent large screen creates an innovative display solution with both visual shock and spatial transparency for you. Our transparent LED screen adopts the most advanced LED display technology. While ensuring ultra-high-definition picture display, it maintains excellent transparency, allowing light to pass through naturally, perfectly integrating into the architectural environment or window, and eliminating the heavy obstruction of traditional screens.
Core advantages:
Transparent display: Up to 80%-90% transparency, without affecting lighting and vision.
Extra-large size: Modular design seamless splicing, easily achieving extra-large display area, meeting large scenes such as stage background, shopping mall atrium, exhibition hall window, building curtain wall, etc.
High-definition picture quality: A variety of pixel pitches are available, providing delicate, smooth, and colorful high-definition dynamic images.
Lightweight and convenient: The screen is thin and light, and the installation and disassembly are fast and efficient
Feature And Advantage
High transparency
High light transmittance: This is the core advantage of transparent screens compared to traditional LED screens. The light transmittance is as high as 85%, which means that the screen is almost invisible in the environment.
No obstruction behind the screen: During stage performances, the audience can clearly see the actors, bands or building structures behind the screen, achieving an immersive visual effect that combines virtuality and reality.
Spatial hierarchy: It is particularly suitable for scenes such as building facades, shopping mall atriums, and window displays. While playing dynamic content, it does not destroy the original sense of space and lighting. It is particularly advantageous during the day and can also be hung in the air for better results.
Adaptability and stability in outdoor environments
High-brightness display: Designed for outdoor strong light environments, the brightness generally reaches more than 5000 (cd/m²). Even in the midday sun, the picture is still clear, bright and eye-catching, without fear of ambient light interference, ensuring long-distance visibility.
IP65 protection level: It has the ability to be completely dustproof and resist low-pressure water spray. It effectively resists common outdoor rain and sand and dust attacks, ensures the stable operation of LED display screens in harsh environments, and reduces the risk of failure and maintenance costs caused by weather.
Excellent wind resistance: The innovative structural design significantly improves the safety of high-altitude installation, and greatly reduces the need for supporting trusses, saving construction costs and complexity.
Quick installation
Modular large-size design: Standardized large-size modules are used. The single box has a large area, which greatly reduces the number of on-site splicing points, significantly shortens the installation and disassembly time, and reduces labor costs, which is especially suitable for the frequent turnover needs of the rental market.
Quick installation system: It is designed with a simple and reliable lock or connection mechanism to support quick splicing and disassembly, improving the overall construction efficiency.
Lightweight structure: The overall structure uses lightweight and high-strength materials to reduce the weight of a single box while ensuring firmness. It is easy to carry and hoist in the air, improving the safety of the operation.
Creative modeling
Curved modeling capability (±30°): The maximum bending angle can reach ±30°, and can be flexibly switched between 0°, ±30° and other angles. Supports creative splicing of curved screens, cylindrical screens, wavy shapes, etc., breaking the limitations of traditional planes and providing unlimited possibilities for stage design and exhibition displays.
Excellent color and image performance: Adopting high-quality LED lamp beads and driver ICs, it provides high refresh rate and high grayscale, ensuring smooth dynamic images without smearing, and delicate and rich color transitions. High contrast makes the picture clear and the details sharp.
Wide viewing angle: It has a wide viewing angle in both horizontal and vertical directions, ensuring that audiences from different positions in the venue can get a clear and consistent visual experience.
Specifications
|
LED outdoor fixed transparent screen TWC-R series |
||||
|
Model |
TWC-R 3-7 |
TWC-R 5-10 |
TWC-R 10-10 |
TWC-R 15-15 |
|
Pixel pitch (mm) |
3.91-7.82 |
5.2-10.4 |
10.4-10.4 |
15.6-15.6 |
|
Module size specifications (mm) |
500x125 |
500x125 |
500x125 |
500x125 |
|
Module pixel resolution |
128x16 |
94x12 |
48x12 |
32x8 |
|
Transmission rate |
55% |
58% |
58% |
72% |
|
Physical pixel (dot/㎡) |
32768 |
18432 |
9216 |
4096 |
|
White balance brightness (cd/㎡) |
≤4500 |
≤4500 |
≤4500 |
≤4500 |
|
Scanning method |
1/8扫 |
1/4扫 |
1/2扫 |
Static |
|
LED lamp bead model |
SMD1921 |
SMD1921 |
SMD2727 |
SMD2727 |
|
Refresh rate (Hz) |
3840 |
3840 |
3840 |
3840 |
|

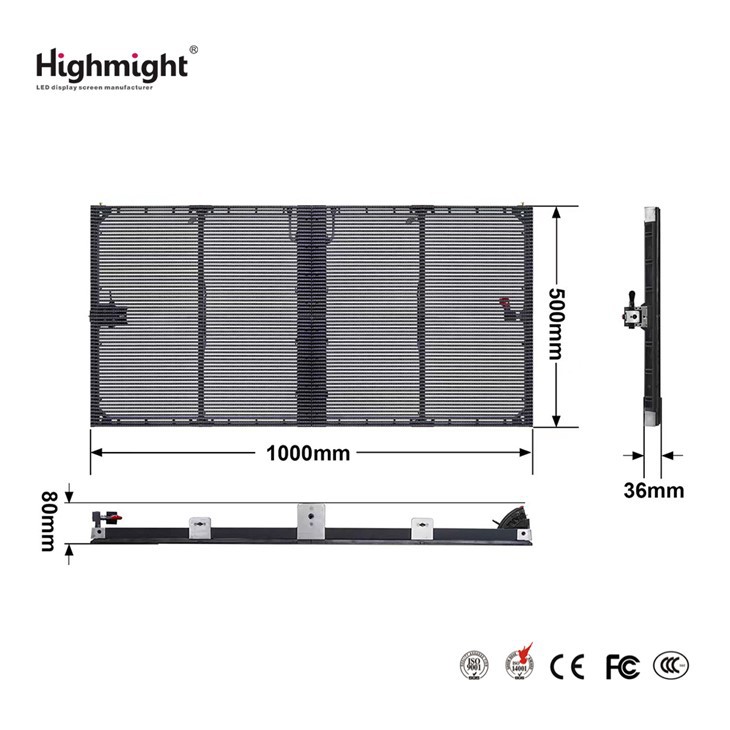

Box size (mm) |
1000x500 |
1000x500 |
1000x500 |
1000x500 |
|
Cabinet resolution |
256x64 |
192x48 |
96x48 |
64x32 |
|
Lamp working life |
≥100,000 hours |
|||
|
Pixel composition |
RGB 3-in-1 |
|||
|
Grayscale |
14bit |
|||
|
Maximum power (W/㎡) |
800-1000W |
|||
|
Conventional power (W/㎡) |
400-600W |
|||
|
Eliminate ghosting |
Equipment |
|||
|
Input voltage |
AC100～240V 50/60HZ |
|||
|
Module input voltage |
DC4.7～5V±0.2V |
|||
|
Work Environment |
Temperature -10～40℃ Humidity 10%-90% No condensation |
|||
|
Protection level |
IP30 |
|||
|
Box material |
Aluminum alloy profiles |
|||
|
Installation |
Hoisting/mounting/fixed installation |
|||
Application Areas
Immersive stage design
Multiple transparent screens are suspended in a staggered manner to create a three-dimensional visual effect. For example, JJ Lin's concert tour used a 1,450 square meter transparent screen, which upgraded the traditional flat background to a spatial stage, and the audience could get a clear picture from any angle.
Adaptability to outdoor performances
With an IP65 protection level, it can withstand a force 8 gale, and the installation height can reach 24 meters, greatly reducing the need for trusses. In the Westland Boys Shenzhen concert, the transparent screen operated stably in changeable weather.
Interactive display of windows and products
The transparent screen is embedded in the store window, dynamically displaying product information while maintaining the transparency of the window. Data shows that the sales of stores using this design increased by an average of 15%.
Pop-up stores and promotional activities
The rental model supports short-term flexible deployment. For example, in temporary promotions, the transparent screen can customize interactive content (such as scanning a code to get a discount) to increase customer stay time and conversion rate.
Highmight Service
Demand assessment: We deeply analyze the specific needs of each project, whether it is a concert or an exhibition, to help customers choose the COB small pitch that best suits their needs and budget.
Tailored solutions: Our technical team provides customized display solutions based on the specific requirements of the venue, ensuring appropriate brightness and resolution to enhance the audience's visual experience.
Product display: We provide customers with product displays to help customers experience the display effect of the screen in advance.
Technical Assistance: Our team offers prompt on-site or remote support during installation to address any technical issues, ensuring the project proceeds without delays.
User Training: We provide comprehensive training on system operation, content management, and troubleshooting, equipping customers with the knowledge to effectively operate and maintain the equipment.
Regular Follow-up Visits: We regularly assess brightness, color consistency, and cable integrity to ensure optimal performance of your monitor.
24/7 Support: Our dedicated team is on call 24/7 to promptly address and resolve any issues.
Spare Parts and Maintenance: We offer fast replacement parts and repair services to minimize downtime and keep your screens running smoothly.
Customer Feedback Integration: We actively collect and analyze customer feedback to continuously improve and enhance our services.
Certificate
FAQ
Q: What is a transparent LED screen? What is the difference between it and ordinary LED screen?
A:
Ordinary LED screen: completely opaque, like a solid wall, completely blocking the scenery behind.
Transparent LED screen: allows light and vision to partially penetrate, displaying content while retaining the background (such as the scenery outside the window, the building structure, the actors/props behind the stage), creating a visual effect of combining virtuality and reality, with a stronger sense of space and a lighter and more modern appearance.
Q: What are the main scenarios for leasing transparent LED screens?
A:
Stage performance/concert: As the main background or side screen, it does not affect the backstage activities and enhances the sense of stage hierarchy and space.
Commercial exhibition/exhibition hall: Window display, product launch, science and technology museum interactive installation, museum cultural relics background introduction, does not affect the sense of space transparency.
Mall atrium/window: Hanging in the atrium or installed behind the window, playing advertisements or information, while customers can see the inside of the store or the view outside the window.
Building curtain wall/glass partition: Turn ordinary glass curtain wall or large floor-to-ceiling window into a dynamic information display wall.
High-end hotel/event venue: Used in banquet halls, lobbies, wedding backgrounds to enhance the sense of technology and atmosphere.
TV studio: Create a news background or variety show stage effect that combines virtual and real.
Q: How clear is the transparent LED screen? Will it look pixelated?
A: Clarity is determined by the pixel pitch (e.g. P3.9mm, P7.8mm, P10.4mm, etc., the smaller the number, the clearer it is). The commonly used models for rental (e.g. P7.8-P10.4) have a clear and sharp picture effect at the appropriate viewing distance (usually a few meters to more than ten meters away). When viewed up close, due to its transparent nature, the pixels are indeed more obvious than solid screens with the same pixel pitch, but this is part of its unique style. For applications that require extremely high clarity and close viewing, we would recommend products with smaller pitches (e.g. P3.9-P5.2), of course, the cost is also higher.
Q: Can transparent LED screens be used outdoors?
A:There are specially designed outdoor waterproof transparent LED screens. They are rainproof and dustproof, and the brightness is higher to fight against the sun. Indoor transparent screens cannot be used outdoors! When renting, be sure to clearly inform the use environment, and we will provide products with corresponding protection levels and brightness.
